Home / Capacitive Touchscreens / 15.6″ High Bright PCAP Touchscreen LCD Module – ELI156-IPHW

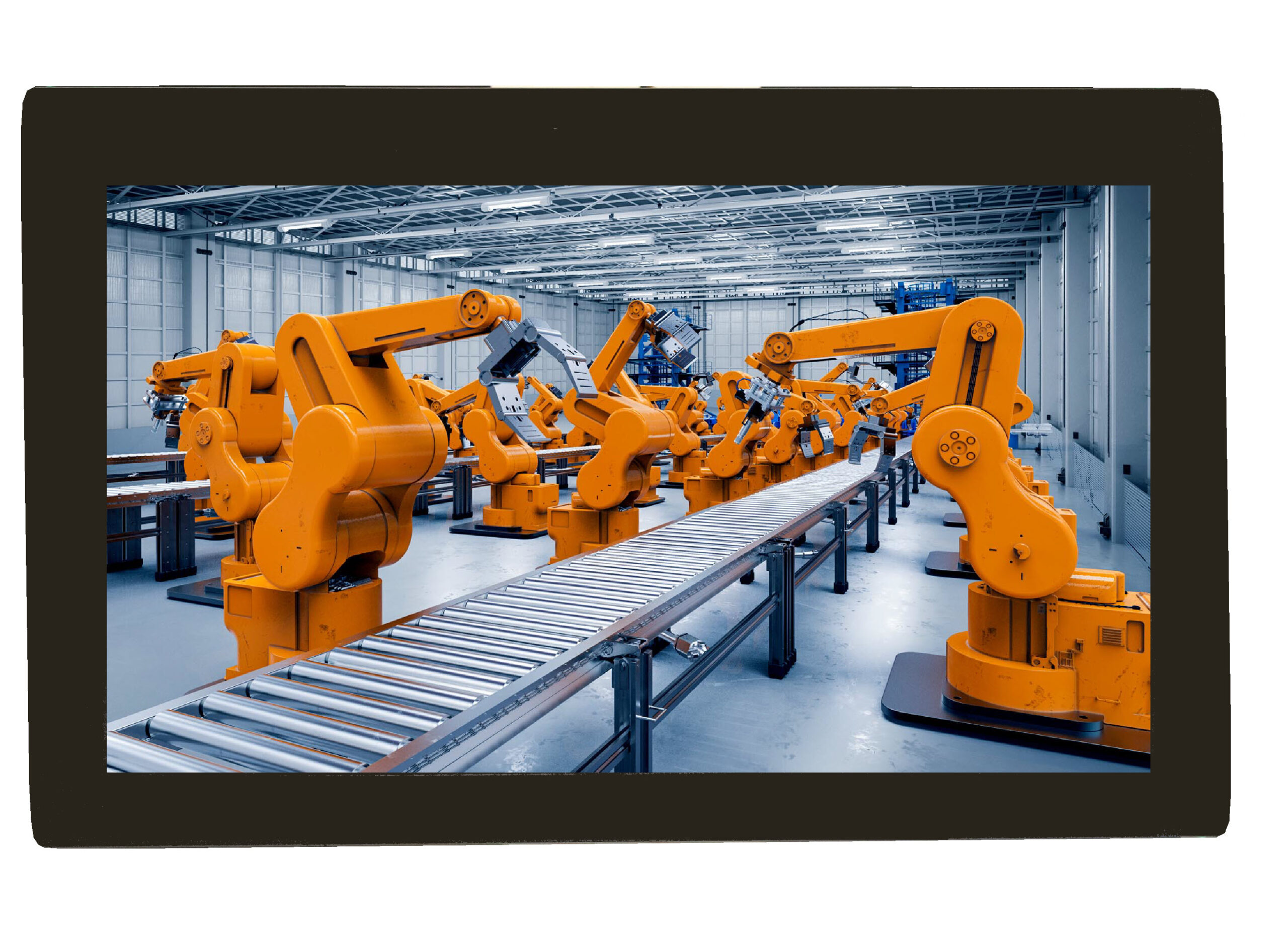

A photo of ELI156-IPHW

15.6″ High Bright PCAP Touchscreen LCD Module – ELI156-IPHW

Part #: ELI156-IPHW
Request a volume price quote from FDI: Request Quote Form
For distribution pricing, click on the Purchase Info tab.

Status: Mass Production
Production guaranteed: Until 2032
Warranty: 1 Year (Extended available)

  • Easy LCD Interface (ELI)
  • 15.6″ PCAP Screen LCD with USB Device Interface
  • 1300 nits Brightness and 750:1 Contrast Ratio (typical)
  • 1.8 mm chemically strengthened cover glass
  • -30° to +85° C operating temperature range
  • Plug and Play interface to standard SBCs
  • HDMI Input with EDID Support
  • +12 Volt DC Input Power (±5% tolerance)

>> See the brochure

SKU: ELI156-IPHW Categories: Capacitive Touchscreens, ELI, ELI 15.6, ELI 7.0 High Bright, Featured, Touch Screen GUI Production Modules
  • Overview
  • Specifications
  • Documentation
  • Software
  • Support
  • Compatibility
  • Ratings
  • Purchase Info

Overview

ELI logo

ELI offers users a family of simple plug and play display solutions for Single Board Computers (SBC) such as the popular Raspberry Pi or Asus Tinker Board. ELI only needs an HDMI video input, a 5VDC to 24VDC power supply, and USB interface for the touchscreen.

ELI takes the frustration out of embedding a touchscreen display into your product. Desktop monitors aren’t well suited for embedded products and bare glass LCD’s present significant design challenges and schedule delays to typical customers. ELI provides an off-the-shelf solution with no NRE or development costs, and full support from our team of US based engineers or any of our franchised distributors.

Quick Start Documentation

Quick Start Guide

Specifications

Screen size

15.6

Touchscreen Type

Projected Capacitive – PCAP

Display Technology

a-Si TFT Active Matrix

Touchscreen Interface

USB Device

Brightness (nits typ)

1300

Resolution

1920 x 1080 FHD

Contrast Ratio (typ)

750:1

Aspect Ratio

Wide 16:9

Colors

16.7 M (24 bit)

Vertical Viewing Angle (U/D)

88/88°

Horizontal Viewing Angle (L/R)

88/88°

Surface Finish

1.8 mm chemically strengthened cover glass

Hardness

> 7H

Touch Panel Force (gF max)

Not Defined

Active Area (in mm) (WxH)

344.16 x 193.59

Response Time (ms typ)

25

Backlight: (# LEDs)

LED

Backlight Life K (hrs min)

50

EDID for Auto Screen Sizing

Yes

Display Interface Input Mode

HDMI

USB (mA typ/max)

Device 50/100

Input Voltage (VDC + 5%)

12

Power Consumption (mA typ/max)

2600/3100@12V

Backlight Power Consumption (mW typ)

up to 93% of Total

Operating Temperature

-30° to 85° C

Storage Temperature

-40° to 85° C

Mounting

4x M3 Screws

Plug & Play with Standard SBCs

Yes

Size

392.8 (W) x 250.3 (H) x 18.6 (D)

Weight (grams typ)

1800

RoHS Compliant

Yes

Documentation

Current Documentation – Rev 1.2

File NameTypeFormatDate
ELI156-IPHW Brochure.pdfBrochurepdf01/12/2021
ELI156-IPHW Quick Start GuideQuick Start Guidepdf01/12/2021
ELI156-IPHW User's ManualUser's Manualpdf01/20/2021
ELI Software User's ManualUser's Manualpdf03/31/2021
ELI Family Input Voltage Matrix
Reference Guidepdf06/10/2021
ELI Part Numbers GuideReference Guidepdf01/05/2016
Hirose DF13 CatalogReference Guidepdf10/01/2016
2D Models for ELI156-IPHW (not available yet)Mechanical Modelszip05/31/2018
3D & EASM Model Files (By Request Only)Mechanical Modelszip05/31/2018
ELI Double Clicks not Recognized in Windows – Registry FixApplication NotePDF02/28/2017
Blanking Screen During BootApplication Notepdf06/28/2018
ELI Touchscreen Calibration in LinuxApplication Notepdf09/14/2018
ELI Touchscreen Calibration in Windows 7Application Notepdf05/17/2018
ELI Touchscreen Calibration in Windows 10Application Notepdf05/17/2018
ELI Application NotesFurther Helplink01/04/2021
Dual ELI Configuration with an HDMI-to-USB-C AdapterReference Guidepdf09/05/2024

Software

FDI Software

File NameTypeFormatDate
Raspberry Pi Disk ImageDisk Imageimg inside zip06/20/2022
Raspberry Pi Configuration File for 15.6" ELI devicesConfiguration Filezip06/20/2022
ELI Software User's ManualUser's Manualpdf01/18/2021
ELI Backlight Control Software for Raspberry PiSoftwarezip5/31/2018
ELI Backlight Control Software for Raspberry Pi 5Softwarezip07/22/2024
ELI Backlight Control Software for Renesas Synergy S7G2Softwarezip04/10/2018

Recommended 3rd Party Software

BeagleBone Black Debian Disk Image
This is the basic Debian image straight from the Beagleboard.org website. No additional configuration is required. However, you may need a program such as 7zip to decompress the download file, since it is in a format more common to Linux than Windows.

7-zip
This is a program that can uncompress many file formats. Necessary for the BeagleBone Black Debian Image.

Raspberry Pi OS
This is the location to the basic Raspberry Pi OS image straight from the Raspberry Pi creators themselves. Some configuration is required, but we’ll help you with that. The configuration steps can be found in Section 7 of our Raspberry Pi User’s Manual.

Python Games
Many of these games made in Python work very well with ELI’s touchscreen.

Support

Support

Once you’ve picked up your ELI, FDI is with you every step of the way. We offer support and documentation on our forums and support wiki.


EDID

Extended Display Identification Data, or EDID, is the data structure passed from a display screen to a device’s video source. Find out more about ELI and EDID here. .

Application Notes

Further assistance can be found in our application notes for the ELI family. https://www.teamfdi.com/eli#appnotes

Recommended Linux Packages Available Through apt-get

We recommend the following packages for your various entertainment and productivity needs:

  • MPlayer – This is a lightweight video player perfectly suited for your Raspberry Pi/Beaglebone Black needs. In the terminal type: sudo apt-get install mplayer
  • Libre Office – A productivity suite containing a word processor, spreadsheet manager, presentation creator, and more of the expected office programs. In the terminal type: sudo apt-get install libreoffice

Support From FDI:

FDI Forums
Design Services
Production Services

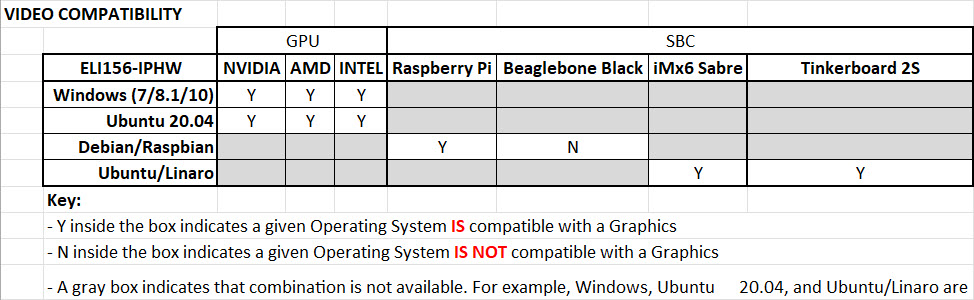

Compatibility

Purchase Info

15.6″ High Bright PCAP Touchscreen LCD Module – ELI156-IPHW
15.6″ High Bright PCAP Touchscreen LCD Module – ELI156-IPHW

Part #: ELI156-IPHW
Request a volume price quote from FDI: Request Quote Form
For pricing, click on one of the Distribution Icons below.

Status: Mass Production
Production guaranteed: Until 2032
Warranty: 1 Year (Extended available)
