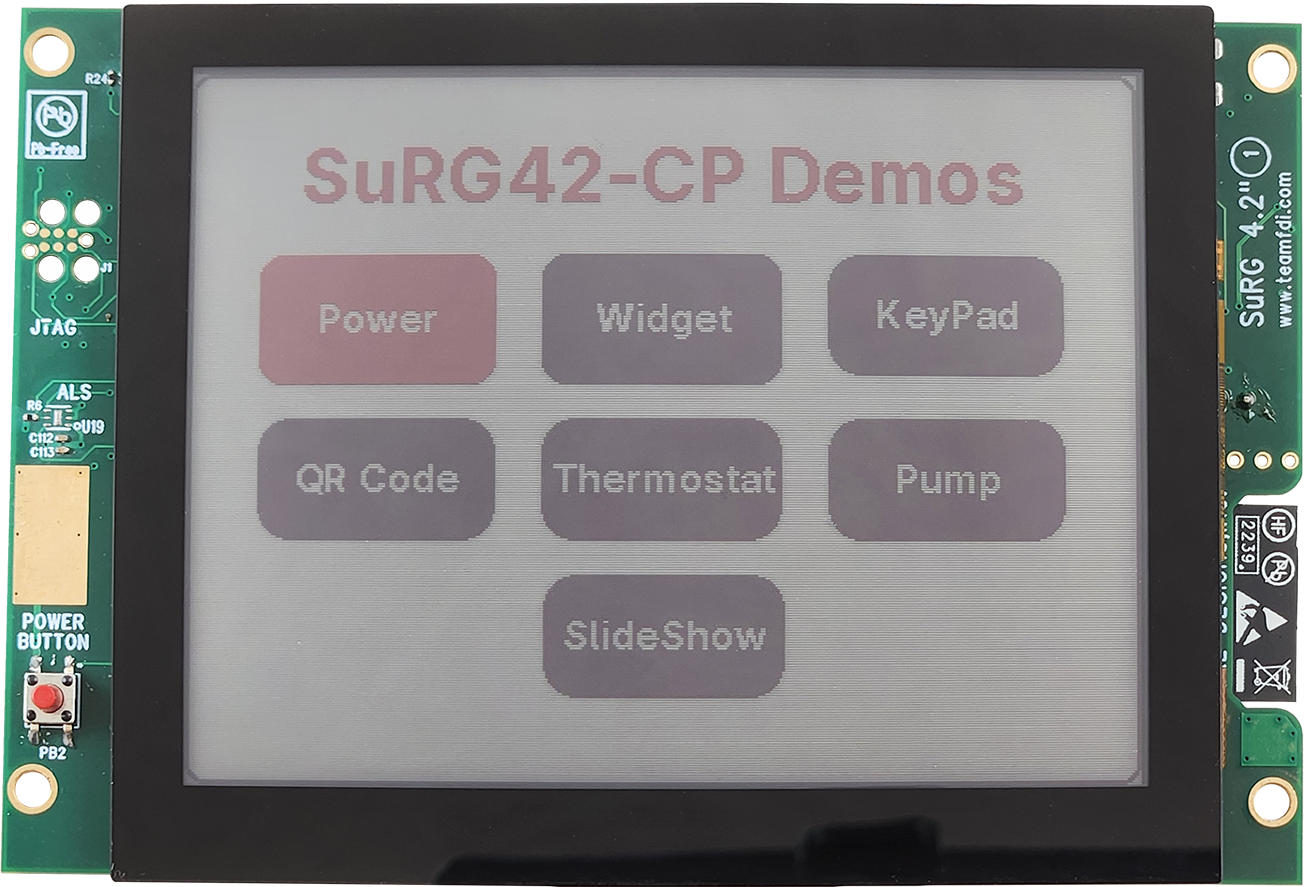

4.2″ PCAP Touchscreen LCD GUI (Dev Kit) – SuRG42-CP

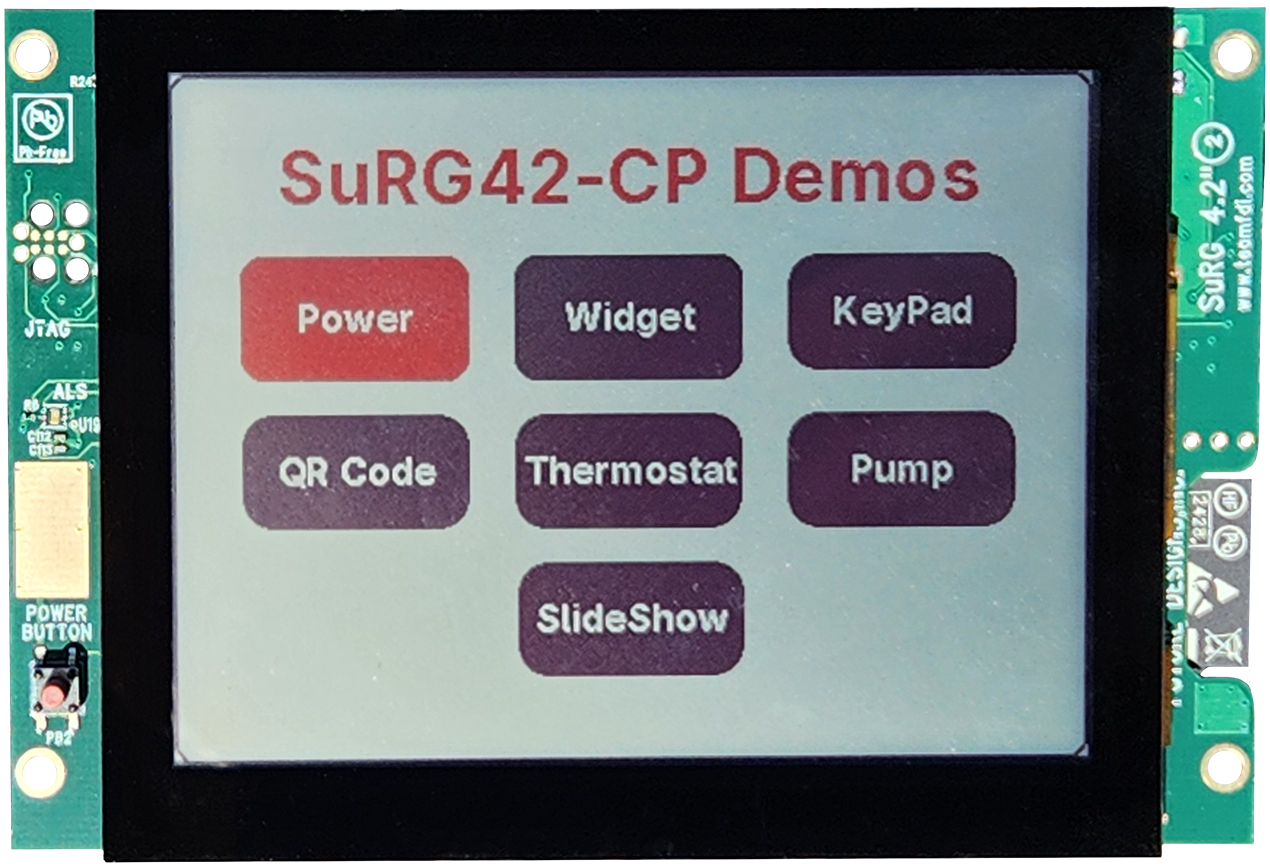

4.2″ PCAP Touchscreen LCD GUI (Dev Kit) – SuRG42-CP - Image 2

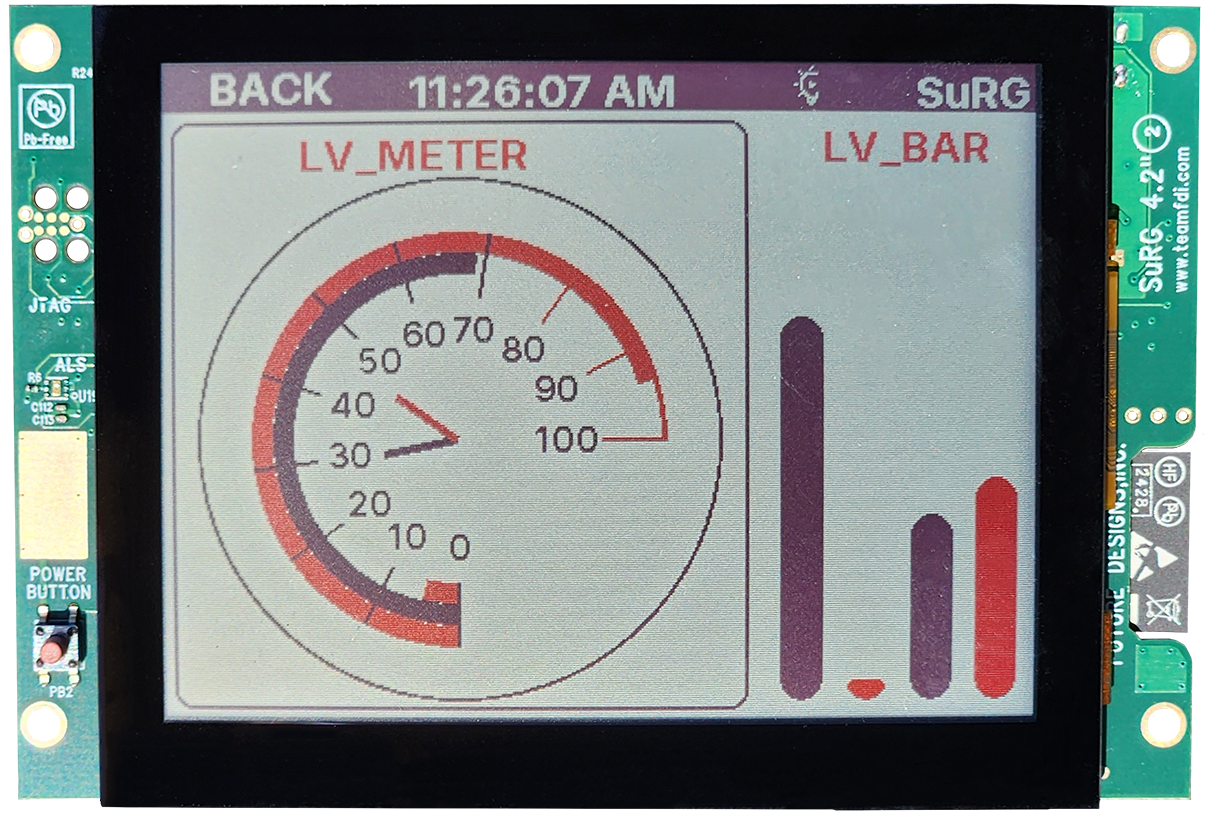

4.2″ PCAP Touchscreen LCD GUI (Dev Kit) – SuRG42-CP - Image 3
4.2″ PCAP Touchscreen LCD GUI (Dev Kit) – SuRG42-CP - Image 4
4.2″ PCAP Touchscreen LCD GUI (Dev Kit) – SuRG42-CP - Image 5

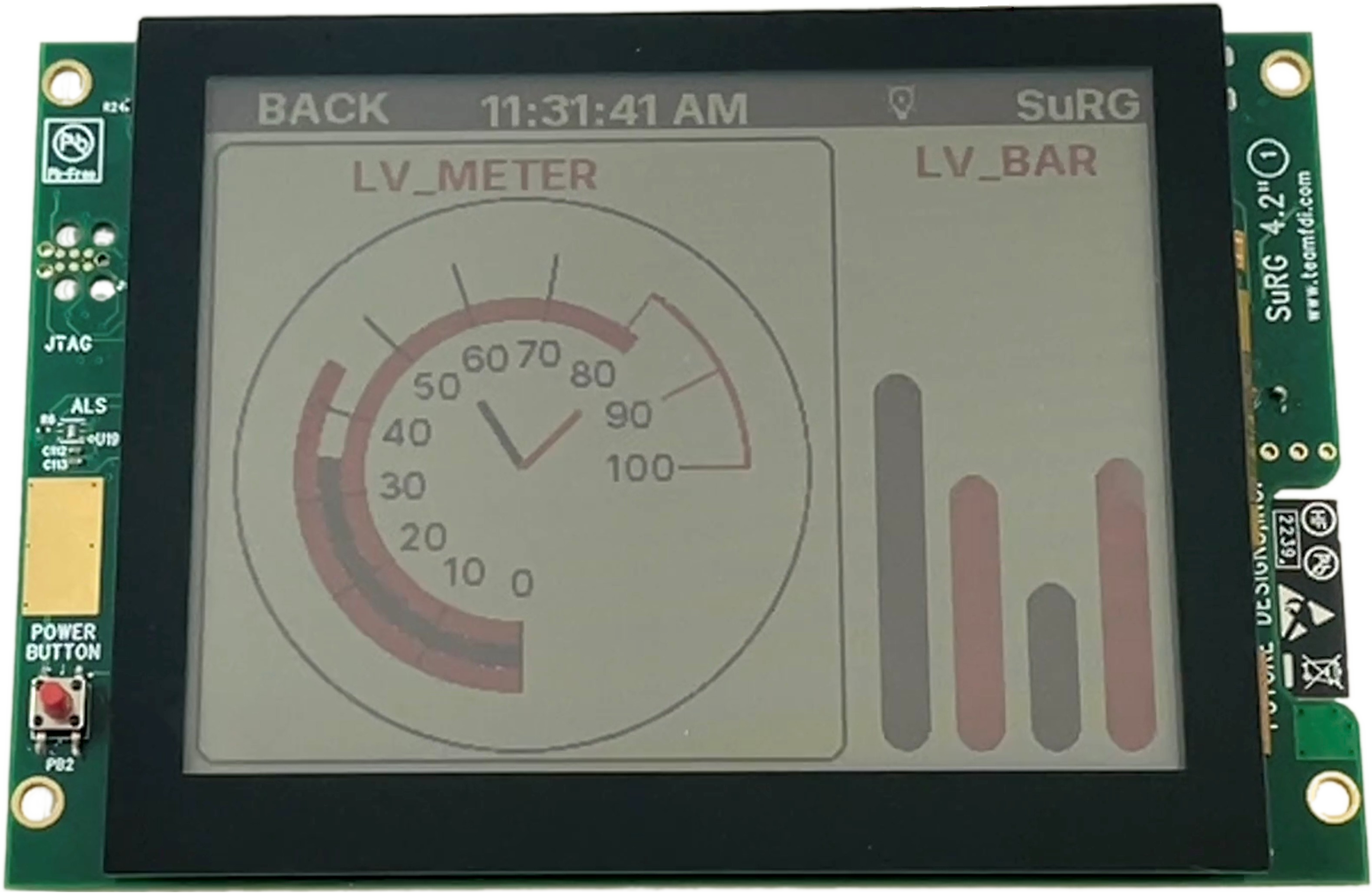

4.2″ PCAP Touchscreen LCD GUI (Dev Kit) – SuRG42-CP

Part #: SuRG42-CP (Dev Kit)
For distribution pricing, click on the Purchase Info tab.

Status: Prototypes
Production guaranteed: Until 2035
Warranty: 1 Year (Extended available)

Associated Part #: SuRG42-CP (Dev Kit)

  • 4.2″ Sunlight-Readable TFT Display
  • 400 x 300 three color display with Projected Capacitive (PCAP) Touchscreen
  • FreeRTOS Real Time Operating System Project Files
  • Advanced Rapid Software Development Platform provided by STM32Cube IDE
  • STM U585 160MHz MCU (Arm Cortex M33) with 2MB Internal Flash, 768K Internal SRAM
  • 16MB QSPI Flash, 2MB Low Power SRAM, 128KB EEPROM
  • Expansion: UART, I²C, SPI, ADC, GPIO, CAN, USB Host/Device

>> See the brochure

SKU: SuRG42-CP (Dev Kit) Categories: , ,

Overview

The 4.2″ PCAP Touchscreen LCD (Dev Kit) – SuRG42-CP – adds a perfect mix of a 4.2″ Sunlight Readable display, long battery life, easy to code graphics and a high performance MCU to FDI’s SuRG® product family. Featuring a crystal-clear, sunlight readable display that eliminates the need for a backlight resulting in ultra low power consumption (See table below for details).

The system contains a high performance 32-Bit MCU with best in class power management making SuRG the optimal choice for outdoor industrial applications. This unit contains a PCAP Touchscreen with a PWM-controllable front-light, allowing for usage even in environments with low ambient lighting.

Get into production faster as FDI offers low cost customization services for customer specific hardware, software or packaging applications at volumes of 500 units or more.

Power Consumption Details (@3V):
  • Input Current
    • Idle, No Touch: 1.28mA            (Images on the display are visible)
    • Active, No Touch: 17.1mA        (Able to update images on the display)
    • Active, No Touch, with Frontlight: 52.63mA
  • Input Power Consumption
    • Idle, No Touch: 3.84mW           (Images on the display are visible)
    • Active, No Touch: 51.3mW      (Able to update images on the display)
    • Active, No Touch, with Frontlight: 157.89mW

Note: Adding touch increases current consumption by 1.04mA.

Quick Start Documentation

Quick Start Guide

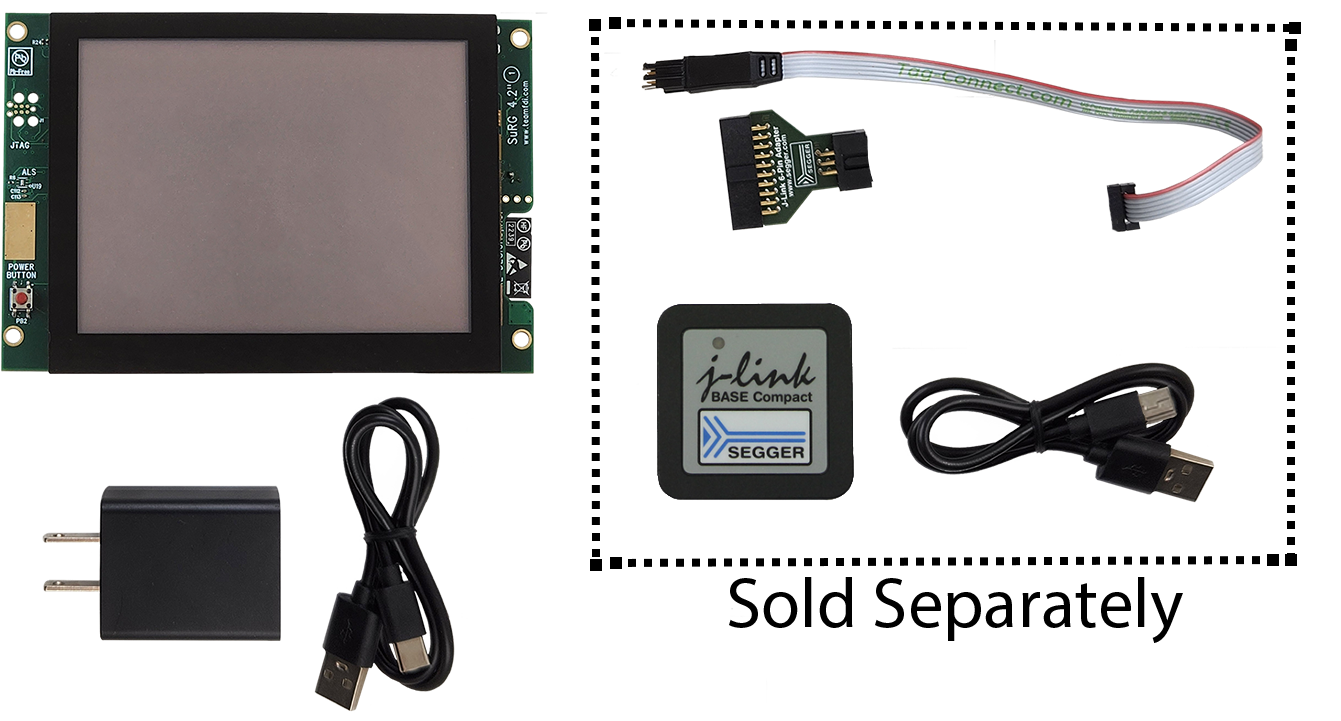

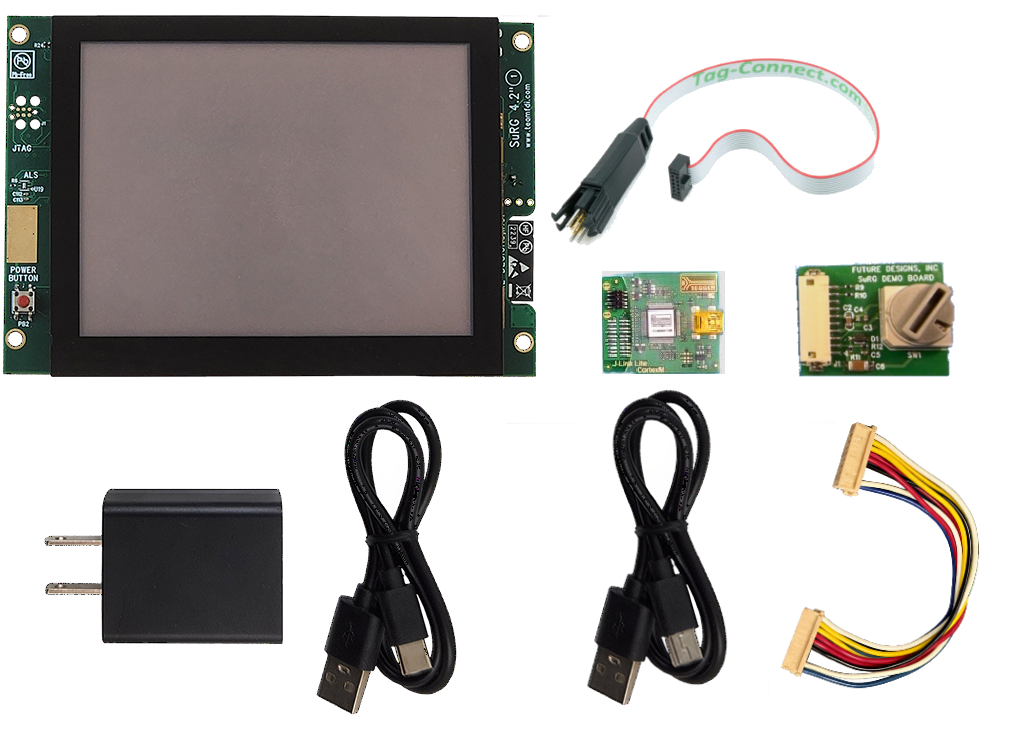

Dev Kit Contents
  • SuRG42-CP Production Module
  • AC Power Supply
  • USB A to Type-C cable for Power and PC communications
  • 4GB (or larger) microSD card
  • Documentation and Example Software



Specifications

Microcontroller

STM U585
- Speed

160MHz
- Internal SRAM

768KB
- Internal Flash

2MB
External Flash

16MB
External Flash Type

QSPI (4 Bit serial)
Non-volatile data storage

Internal 128Kb EEPROM
SD Card Bus interface

4-Bit SD mode @ 50MHz
USB

USB Device Mini-AB for Host or Device Operation
Expansion

50-pin Fine Pitch I/O Connector for External Expansion:Serial Ports, UART, I²C, SPI, USB Host/Device interface
Temperature Sensor

Yes
JTAG

Cortex-M 6-pin SWD JTAG Debug Tag-Connect
RTC

Internal RTC, Supercap backup
Audio

On-board Buzzer
Operating Temperature:

-20° to 70° C
Storage Temperature:

-30° to 80° C
Power Input

Alt Power Connector or USB-C (5V 3A) Connector
Input Voltage:

3.0 to 24.0 V DC (Alt Pwr Connector) 5.0V (USB C Connector)
Power Consumption:

78uA (power off), 3.84mA (idle, w/o touch), 6.96mA (idle, w/touch), 51.3mA (active, no front light), 157.89mA (active, w/front light (value may change based on PWM level))
Overall Size

116:84(W) x 78.61(H) x 17.68 (D) mm
Mounting:

#6 screws in 4 corners
Weight:

98 grams (typ)
RoHS Compliant:

Yes
Screen Size (diagonal)

4.2 inches
Display Technology

Reflective TFT-LCD
Resolution

400 x 300
Brightness (when front light is on)

~20 nits
Ambient Contrast Ratio (ACR)

17:1 (frontlight off), 15:1 (frontlight on)
Aspect Ratio

4 x 3
Colors:

3 (RWB) (2-bit)
Vertical Viewing Angle:

60/60° U/D
Horizontal Viewing Angle:

60/60° L/R
Surface Finish:

Anti-glare
Touchscreen type

Projected Capacitive
Active Area:

63.60 x 84.80 MM
Response Time:

30ms Tr+Tf (typ)
Kit Available?

Yes

Documentation

Current Documentation – Rev 1.0

TitleTypeFormatDate
Start-Here GuideStart Here Guidepdf11/18/2025
BrochureBrochurepdf11/18/2025
SuRG42-CP User's ManualUser's Manualpdf11/18/2025
SuRG42-CP Quick Start GuideQuick Start Guidepdf11/18/2025

Software

TitleTypeFormatDate
Converting Images for Use on SuRGInstruction Document.pdf09/23/2025
SD Card FilesSD Card Files.zipmm/dd/yyyy
SuRG Image Conversion ScriptsScripts in .zip.zip09/23/2025
FDI Software

SuRG® Source Files
SuRG® is an open source, embedded middleware platform providing underlying RTOS and processor abstraction features enhancing portability of application code to multiple ARM platforms with high reusability.

Recommended 3rd Party Software

STM32CubeIDE
STM32 compiler and development suite.

FreeRTOS
Developed in partnership with the world’s leading chip companies over a 12 year period, FreeRTOS is the market leading real time operating system (or RTOS), and the de-facto standard solution for microcontrollers and small microprocessors.

LVGL
LVGL is an open-source, lightweight library for designing Graphical User Interfaces (GUI) for any embedded application that operates with a graphical LCD. It is compatible with single-task and multitask environments. It may be adapted to any size physical and virtual display with any LCD controller and CPU.

J-Link Software Downloads
Various Various Download latest software and drivers from the SEGGER website.

Resources

J-Link Product Page
SEGGER J-Links are the most widely used line of debug probes available today. They’ve been proven for more than 10 years with over 250,000 units sold, including OEM versions and on-board solutions. This popularity stems from the unparalleled performance, extensive feature set, large number of supported CPUs, and compatibility with all popular development environments.

Support

Support

Once you’ve picked up your SuRG Unit, FDI is with you every step of the way. We offer support and documentation on our forums.

____________________

Quick Start GUI Program
  • Customer Provides Menu Inputs
  • Photoshop, PowerPoint or even napkin drawings
  • Simple Menus and Functions usually less than 8 screens
  • 1-2 week turnaround for $5,000 or less
  • Customer starts API level application development immediately
