(Huntsville, Alabama — March 11, 2014)
Future Design’s new 4.3″ Capacitive Touchscreen LCD Kit for LPC4088 is a compact, highly integrated, Touch LCD controller platform that can be quickly and easily integrated into your product. The newest revision in the µEZ GUI Family, the uEZGUI-4088-43WQN is based on the LPC4088 microprocessor from NXP and has 8MB (optional up to 32MB) of TSOP SDRAM, and features 128Mbit Serial SPIFI Memory.

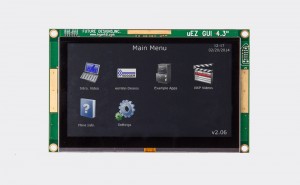

uEZGUI-4088-43WQN
The µEZGUI-4088-43WQN also features a 4.3” TFT WQGA LCD Panel with integrated PCAP touchscreen interface. With customer demand for PCAP touchscreens in GUI and HMI applications increasing rapidly, due to the influence of consumer products like Android devices and iPhones, FDI is excited to offer a PCAP touchscreen solution for the embedded market.
On board features include USB Host/Device, micro SD memory card, Real-Time Clock with Super Cap backup, 3-axis accelerometer, speaker, temperature sensor and mini JTAG connector. The unit also supports the addition of an Expansion Board for additional communication interface options like USB Host, Ethernet, RS485, and RS232 support.
The µEZGUI-4088-43WQN features video playback capability from the high speed micro SD Card using a simple technique developed by FDI. Video playback is WQVGA resolution with a 15 frame per second playback rate and is useful for functions such as Quick Start Instructions at boot-up, detailed trouble shooting guides or even product advertising when a unit is idle. Video sources can be in common formats such as MPEG or AVI with a simple one-time conversion on a PC before storage and playback uEZ GUI.
The kit is based on FDI’s µEZ® Rapid Development Platform (pronounced “Muse”), which includes an extensive library of open-source software, drivers, and processor support, all under a common framework. μEZ development works on the premise of “design once, reuse many times.” μEZ allows companies to focus on innovation and on their own value-added applications while minimizing development time and maximizing software reuse.
The kit includes a Segger J-Link Lite JTAG debugger and a demo version of the powerful Segger emWin GUI software development package along with all cables and a stylus for the touchscreen. All documentation is included on the 2GB micro SD card and when the unit is plugged into a PC the card appears as a USB Flash drive so the documentation can easily be copied to the PC. The unit is also available as a stand-alone board assembly for cost effective use in volume applications under Part Number uEZGUI-1788-43WQR-BA.
Volume pricing for the –BA assembly is around $125.00 at 1Ku. Both the Dev Kit and the cost effective Board Assembly are available through any of our franchised distributors including Avnet Embedded, Digi-Key and Mouser. More information on these products can be found on our website at www.uezgui.com or atwww.teamfdi.com
About Future Designs, Inc.
Future Designs, Inc. is a full service design and production company with hardware, software, mechanical and system level expertise. We offer one stop shopping for our customers and provide “as much” or “as little” help as needed to get your product to market.
FDI can take your concept all the way from the back of a napkin, through design and prototypes, to high volume production, branded with your logo and shipped directly to your end customers. Our uEZ™ GUI Family of integrated solutions for Touchscreen LCD Graphical User Interfaces provides an “Off The Shelf” solution that allows customers to quickly and cost effectively upgrade their User Interfaces to meet today’s market requirements.
FDI has a proven 25 year history of successful product design and manufacturing. Please give us a call at (256) 883-1240 to find out how we can help make your product a success. Visit FDI on the web at www.teamfdi.com
