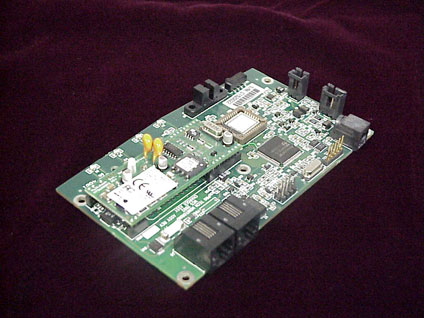

This microcontroller-based design controls an ultra-high efficiency, 30 V BLDC compressor motor, a 12 V stepper motor, a variable voltage proportional valve, a digital (on/off) valve, and monitors three different precision air pressure sensors. It includes battery backed RTC & RAM and supports remote debug and downloadable application firmware updates in FLASH.
