ELI

EASY LCD INTERFACE FAMILY

A proven off-the-shelf embedded touchscreen LCD interface

ELI, the Easy LCD Interface, is an off-the-shelf LCD touchscreen specifically designed for projects using single board computers such as Raspberry Pi or BeagleBone Black. ELI devices are also compatible with NXP i.MX6 single board computers.

Learn More:

  1.  ELI Product Family Brochure
  2.  ELI Family Overview (Presentation)

ELI is available off-the-shelf from any of our franchised distributors:

ELI Support

ELI Products

PCAP COMMERCIAL VERSION

4.3″

eli43-cp

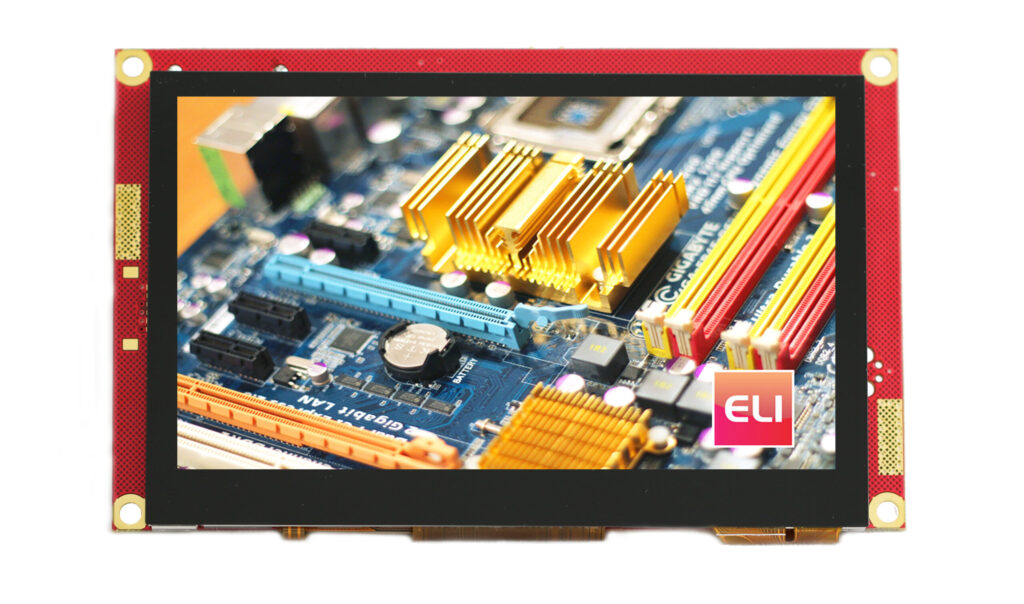

4.3″ PCAP Touch Screen LCD Module for SBCs – ELI43-CP

Part #: ELI43-CP
MSRP (Qty Volume): <$75.00
MSRP (Qty 1): $94.00

Status: In Production
Production guaranteed: Until 2027
Warranty: 1 Year (Extended available)
Buy it now:
COMMERCIAL VERSION

4.3″

eli43-cr

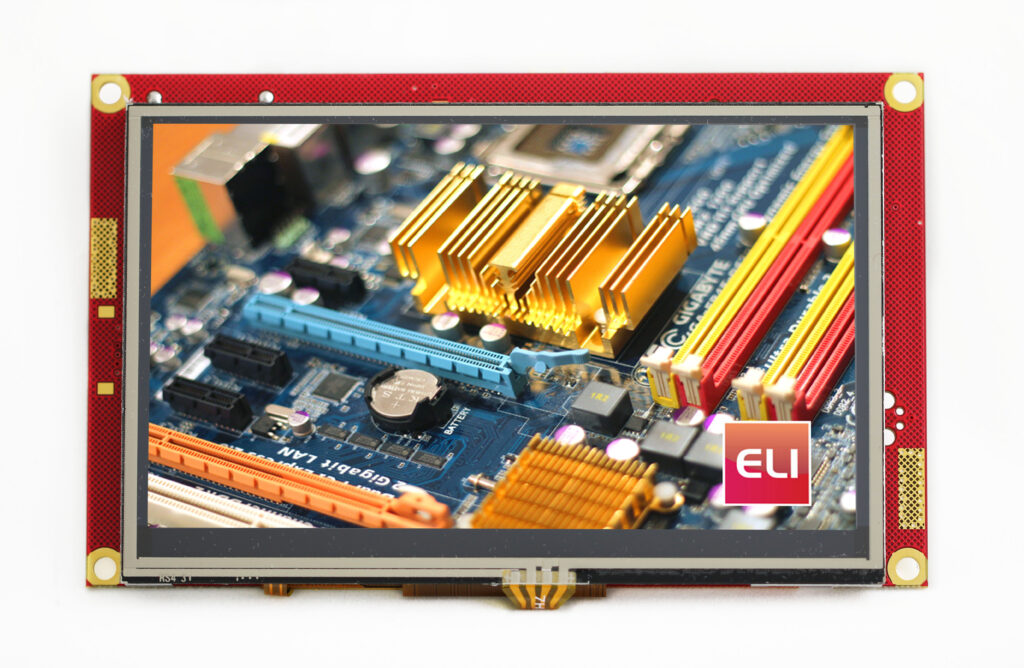

4.3″ Resistive Touch Screen LCD Module for SBCs – ELI43-CR

Part #: ELI43-CR
MSRP (Qty Volume): <$60.00
MSRP (Qty 1): $74.00

Status: In Production
Production guaranteed: Until 2027
Warranty: 1 Year (Extended available)
Buy it now:
COMMERCIAL VERSION

7.0″

eli70-cr
7.0″ Resistive Touch Screen LCD Module for SBCs – ELI70-CR

Part #: ELI70-CR
MSRP (Qty Volume): <$99.00
MSRP (Qty 1): $119.00

Status: In production
Production guaranteed: Until 2027
Warranty: 1 Year (Extended available)
Buy it now:
HIGH BRIGHT EXTENDED TEMPERATURE VERSION

7.0″

eli70-irhw-m

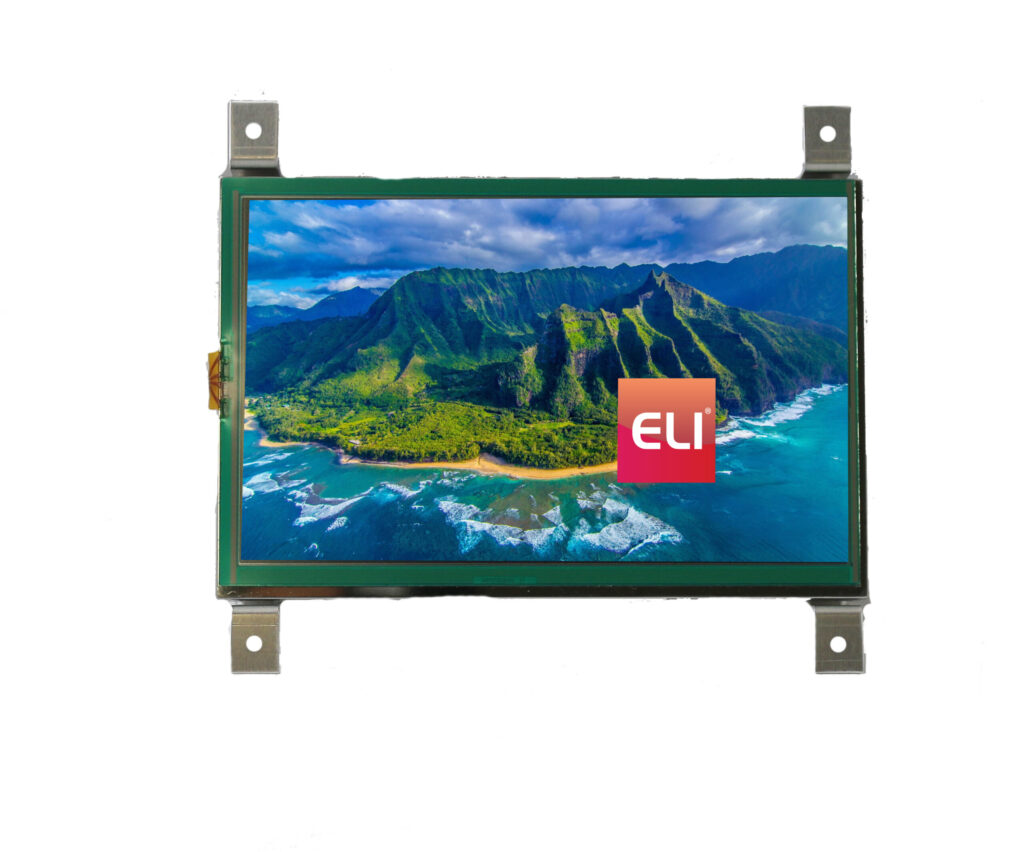

7.0″ High Bright Resistive Touch Screen LCD Module for SBCs with Mounting Bracket – ELI70-IRHW-M

Part #: ELI70-IRHW-M
MSRP (Qty Volume): <$238.00
MSRP (Qty 1): $290.00

Status: In Production
Production guaranteed: Until 2027
Warranty: 1 Year (Extended available)
Buy it now:
eli70-irhw
7.0″ High Bright Resistive Touch Screen LCD Module for SBCs – ELI70-IRHW

Part #: ELI70-IRHW
MSRP (Qty Volume): <$225.00
MSRP (Qty 1): $275.00

Status: In Production
Production guaranteed: Until 2027
Warranty: 1 Year (Extended available)
Buy it now:
eli70-iphw-m
7.0″ High Bright PCAP Touch Screen LCD Module for SBCs with Mounting Bracket– ELI70-IPHW-M

Part #: ELI70-IPHW-M
MSRP (Qty Volume): <$293.00
MSRP (Qty 1): $363.25

Status: In Production
Production guaranteed: Until 2027
Warranty: 1 Year (Extended available)
Buy it now:
eli70-iphw
7.0″ High Bright PCAP Touch Screen LCD Module for SBCs – ELI70-IPHW

Part #: ELI70-IPHW
MSRP (Qty Volume): <$280.00
MSRP (Qty 1): $350.00

Status: In Production
Production guaranteed: Until 2027
Warranty: 1 Year (Extended available)
Buy it now:
eli70-inhw-m
7.0″ High Bright No Touch Screen LCD Module for SBCs with Mounting Bracket – ELI70-INHW-M

Part #: ELI70-INHW-M
MSRP (Qty Volume): <$238.00
MSRP (Qty 1): $290.00

Status: In Production
Production guaranteed: Until 2027
Warranty: 1 Year (Extended available)
Buy it now:
eli70-inhw

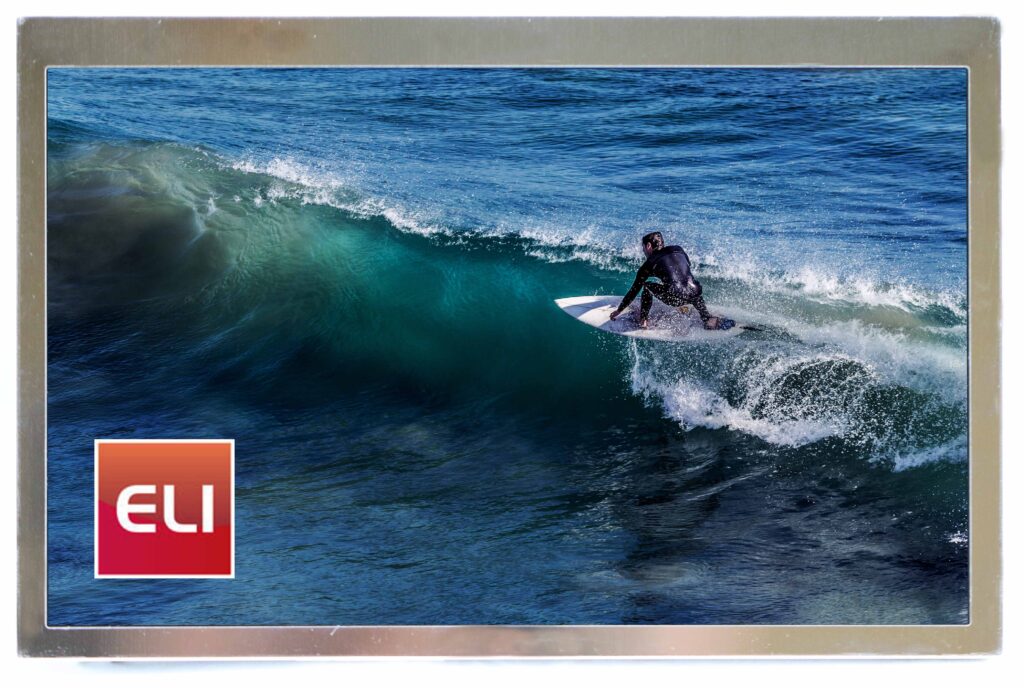

7.0″ High Bright No Touch Screen LCD Module for SBCs – ELI70-INHW

Part #: ELI70-INHW
MSRP (Qty Volume): <$225.00
MSRP (Qty 1): $275.00

Status: In Production
Production guaranteed: Until 2027
Warranty: 1 Year (Extended available)
Buy it now:
PCAP COMMERCIAL VERSION

10.1″

eli101-cpw
10.1″ PCAP Touch Screen LCD Module for SBCs – ELI101-CPW

Part #: ELI101-CPW
MSRP (Qty Volume): <$205.00
MSRP (Qty 1): $300.00

Status: Prototypes Available
Production guaranteed: Until 2027
Warranty: 1 Year (Extended available)
Buy it now:
COMMERCIAL VERSION

12.1″

eli121-crw

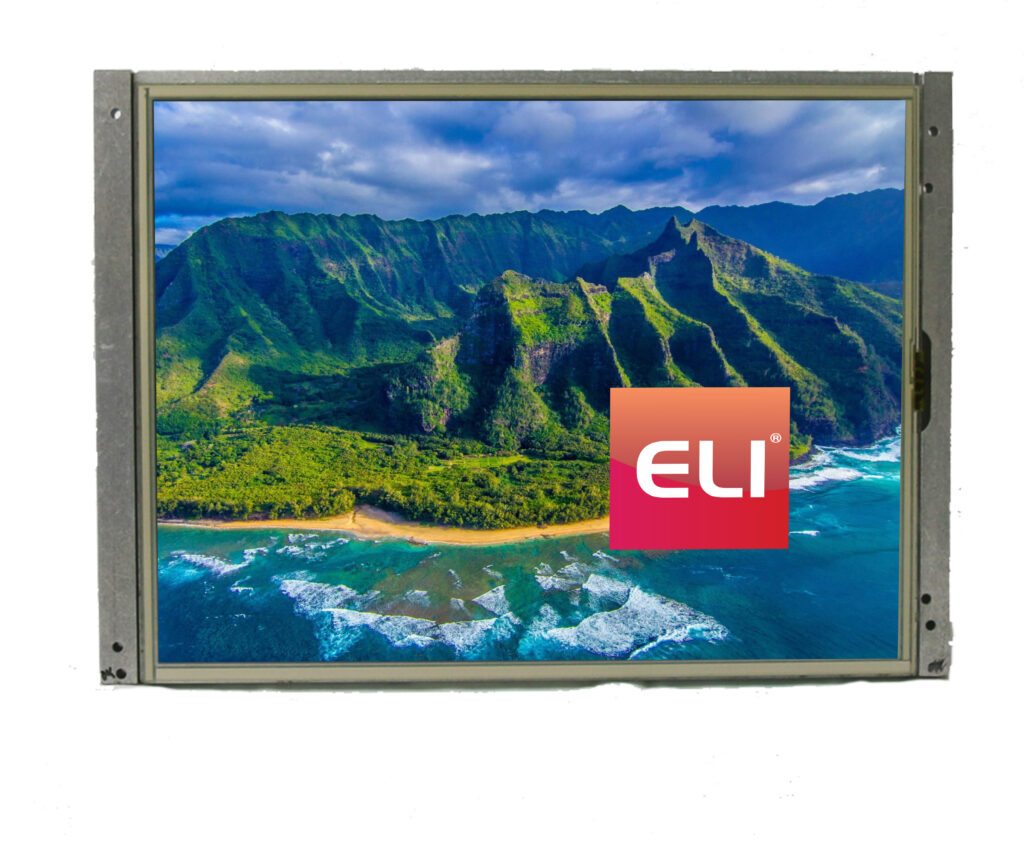

12.1″ Resistive Touch Screen LCD Module for SBCs – ELI121-CRW

Part #: ELI121-CRW
MSRP (Qty Volume): <$300.00
MSRP (Qty 1): $455.00

Status: In Production
Production guaranteed: Until 2027
Warranty: 1 Year (Extended available)
Buy it now:

ELI Support

FDI introduced ELI® as a solution to the common customer problems of adding LCD interface to computing platforms such as the BeagleBone Black, Raspberry Pi and other popular Single Board Computers (SBC’s). ELI is designed, manufactured and tested here in the US, by FDI’s skilled production team, and every unit is fully supported by our US based team of engineers and technical specialists.

Compatibility

ELI is designed to play nicely with most products and this list shows some of the more popular units that have been tested and confirmed to work with ELI.

ELI should also work with almost any SBC that has an HDMI or DVI output, so don’t fret if your unit isn’t shown on the list above. If you want to know for sure, just drop us an email at support@teamfdi.com, and list the specific P/N or model for your SBC and our Product Support Team will check it out and let you know.

Read more about EDID on the FDI EDID Information Page.


ELI Model Support

  • ELI43-CP – 4.3“ PCAP Commercial Version
  • ELI43-CR – 4.3” Commercial Version
  • ELI70-CR – 7.0“ Cost Effective Commercial Version
  • ELI70-IRHW – 7.0” High Bright Extended Temperature Version
  • ELI101-CPW – 10.1“ Cost Effective Commercial Version
  • ELI121-CRW – 12.1” Industry Standard Version

Support Files


Developer Sandbox

ELI Developers Sandbox (FDI moderated area for users and developers to share information.)

ELI Videos





























































The Team at FDI is here to help you bring your project plan together.

In this section we will provide guides, tip sheets and application notes to assist you with ELI project development. Please reference this area frequently as it will be updated regularly with new information.

If you have lingering questions or suggestions for topics that could be addressed please contact a member of our technical team by email at Support@TeamFDI.com

ELI Application Notes

TitleType of DocumentFormatDateDownload
AR1100 Calibration and Setup GuideApplication Notepdf08/10/2016
ELI Touch Setup with the AR1100 UtilityVideo TutorialOnline10/06/2016
Configuring Linux PCs for use with ELI43-CP and ELI43-CRApplication Notepdf10/14/2016
ELI Family Input Voltage MatrixReference Guidepng02/10/2017

ELI Selection Guide
