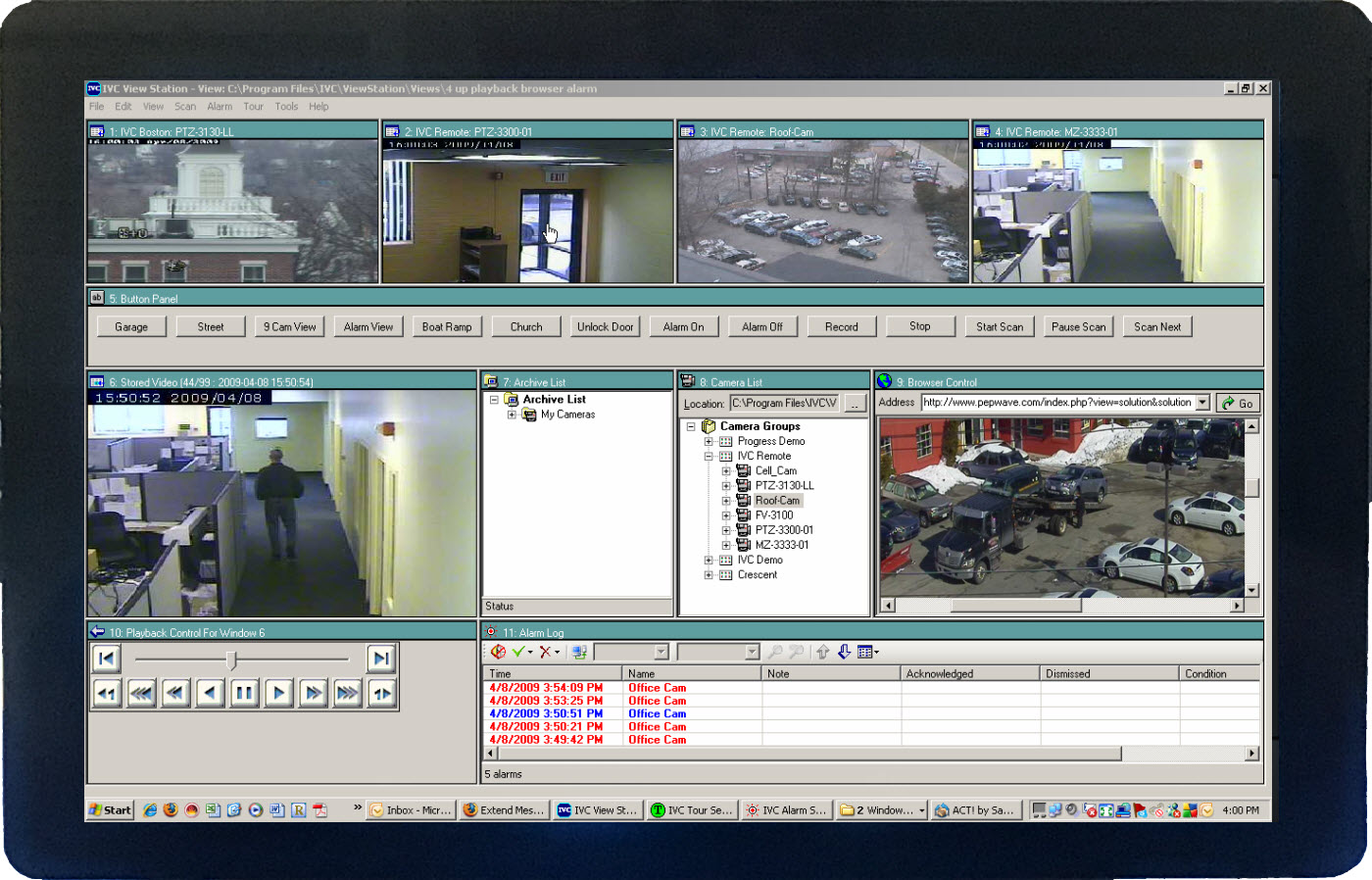

A photo of ELI101-IPHW from the front

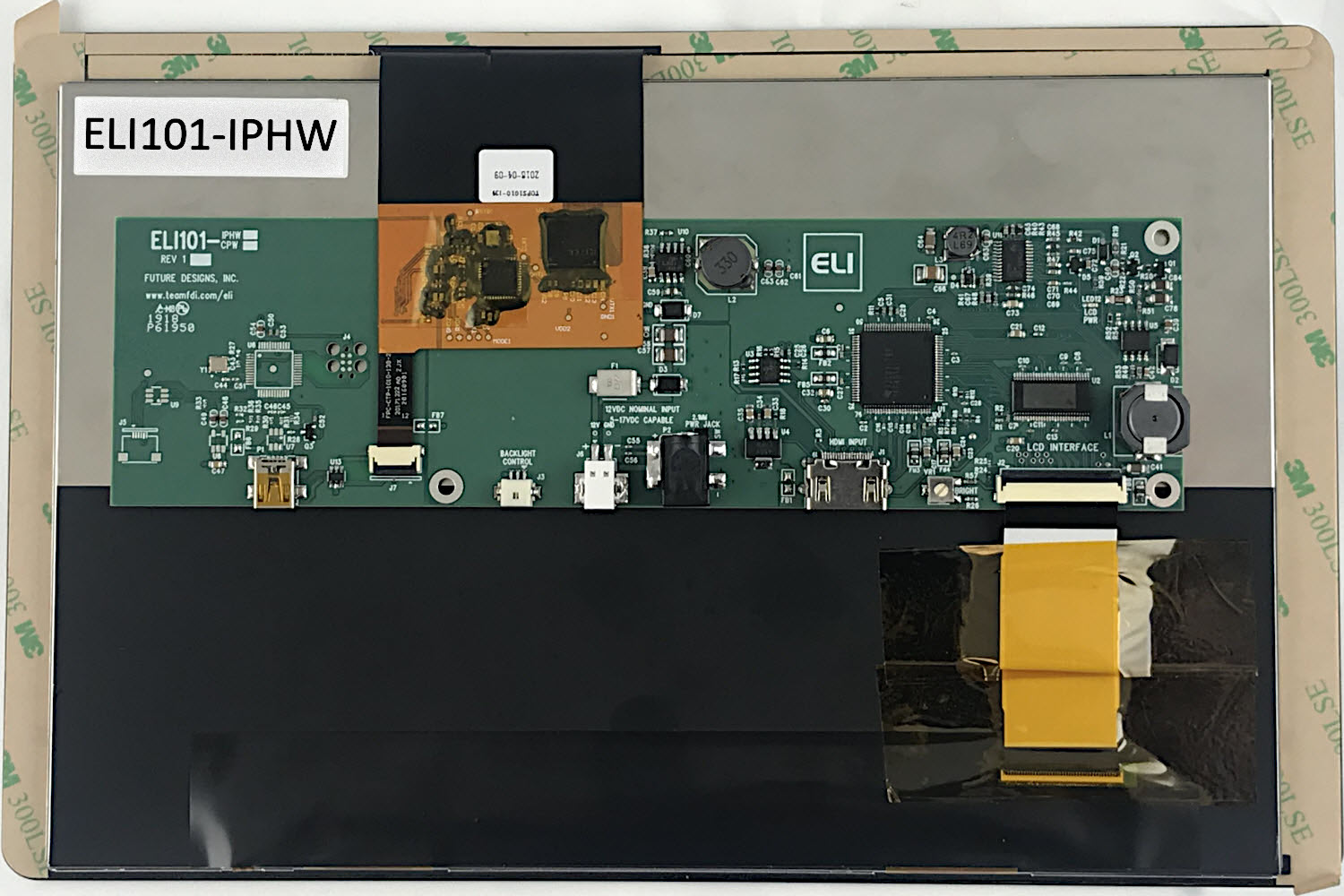

A photo of ELI101-IPHW from the back

10.1″ High Bright PCAP Touchscreen LCD Module – ELI101-IPHW

Part #: ELI101-IPHW

Request a volume price quote from FDI: Request Quote Form

For distribution pricing, click on the Purchase Info tab.

Status: Mass Production

Production guaranteed: Until 2032

Warranty: 1 Year (Extended available)

  • Easy LCD Interface (ELI)
  • 10.1″ PCAP Screen LCD with USB Device Interface
  • 690 nits Brightness and 800:1 Contrast Ratio (typical)
  • 1.1 mm chemically strengthened Steel Glass
  • -20° to +70° C operating temperature range
  • Plug and Play interface to standard SBCs
  • HDMI Input with EDID Support
  • 5 to 24 VDC Input Power (±5% tolerance)
SKU: ELI101-IPHW Categories: , , , , , ,

Overview

ELI-logoELI offers users a family of simple plug and play display solutions for Single Board Computers (SBC) such as the popular Raspberry Pi or BeagleBone Black. ELI devices are also compatible with NXP i.MX6 and Samsung Artik single board computers. ELI only needs an HDMI video input, a 5VDC to 24VDC power supply, and USB interface for the touchscreen.

ELI takes the frustration out of embedding a touchscreen display into your product. Desktop monitors aren’t well suited for embedded products and bare glass LCD’s present significant design challenges and schedule delays to typical customers. ELI provides an off-the-shelf solution with no NRE or development costs, and full support from our team of US based engineers or any of our franchised distributors.

Quick Start Documentation

Quick Start Guide

Specifications

Screen size

10.1
Touchscreen Type

Projected Capacitive – PCAP
Display Technology

IPS a-Si TFT LCD
Touchscreen Interface

USB Device
Brightness (nits typ)

690
Resolution

1280 x 800 (WXGA)
Contrast Ratio (typ)

800:1
Aspect Ratio

Wide 16:9
Colors

16.7 M (24 bit)
Vertical Viewing Angle (U/D)

85/85°
Horizontal Viewing Angle (L/R)

85/85°
Surface Finish

1.1 mm chemically strengthened Steel Glass
Hardness

> 7H
Touch Panel Force (gF max)

Not Defined
Active Area (in mm) (WxH)

216.96 x 135.60
Response Time (ms typ)

25
Backlight: (# LEDs)

45 LED
Backlight Life K (hrs min)

50
EDID for Auto Screen Sizing

Yes
Display Interface Input Mode

HDMI
USB (mA typ/max)

Device 50/100
Input Voltage (VDC + 5%)

5-24
Power Consumption (mA typ/max)

550/650@12V
Backlight Power Consumption (mW typ)

up to 61% of Total
Operating Temperature

-20° to 70° C
Storage Temperature

-30° to 80° C
Mounting

3M 300LSE tape or other 3M tape
Plug & Play with Standard SBCs

Yes
Size

251.2(W) x 161.6(H) x 19.0 (D)
Weight (grams typ)

380
RoHS Compliant

Yes

Documentation

Current Documentation – Rev 4.1

File NameTypeFormatDate
ELI101-IPHW Brochure.pdfBrochurepdf01/24/2020
ELI101-IPHW Quick Start GuideQuick Start Guidepdf10/10/2018
ELI Software User's ManualUser's Manualpdf03/31/2021
ELI101-IPHW User's ManualUser's Manualpdf07/19/2024
ELI Family Input Voltage Matrix
Reference Guidepdf06/10/2018
ELI Part Numbers GuideReference Guidepdf01/05/2016
Hirose DF13 CatalogReference Guidepdf10/01/2016
2D Models for ELI101-IPHWMechanical Modelszip05/31/2018
3D & EASM Model Files (By Request Only)Mechanical Modelszip05/31/2018
ELI Double Clicks not Recognized in Windows – Registry FixApplication NotePDF02/28/2017
Blanking Screen During BootApplication Notepdf06/28/2018
ELI Touchscreen Calibration in LinuxApplication Notepdf09/14/2018
ELI Touchscreen Calibration in Windows 7Application Notepdf05/17/2018
ELI Touchscreen Calibration in Windows 10Application Notepdf05/17/2018
ELI101-IPHW Product Change Notice for Rev 2.1Product Change Noticepdf11/20/2018
ELI101-IPHW Product Change Notice for Rev 3.0Product Change Noticepdf02/20/2019
ELI101-IPHW Product Change Notice for Rev 4.0Product Change Noticepdf10/20/2022
ELI101-IPHW Product Change Notice for Rev 4.1Product Change Noticepdf02/02/2023
Dual ELI Configuration with an HDMI-to-USB-C AdapterReference Guidepdf09/05/2024

Software

FDI Software

File NameTypeFormatDate
Raspberry Pi Configuration File for ELI101-IPHWConfiguration Filezip02/28/2023
Raspberry Pi Disk ImageDisk Imageimg inside zip06/20/2022
ELI Software User's ManualUser's Manualpdf03/31/2021
ELI Backlight Control Software for Raspberry PiSoftwarezip5/31/2018
ELI Backlight Control Software for Raspberry Pi 5Softwarezip07/22/2024
ELI Backlight Control Software for Renesas Synergy S7G2Softwarezip04/10/2018

Recommended 3rd Party Software

BeagleBone Black Debian Disk Image
This is the basic Debian image straight from the Beagleboard.org website. No additional configuration is required. However, you may need a program such as 7zip to decompress the download file, since it is in a format more common to Linux than Windows.

7-zip
This is a program that can uncompress many file formats. Necessary for the BeagleBone Black Debian Image.

Raspberry Pi OS
This is the location to the basic Raspberry Pi OS image straight from the Raspberry Pi creators themselves. Some configuration is required, but we’ll help you with that. The configuration steps can be found in Section 7 of our Raspberry Pi User’s Manual.

Python Games
Many of these games made in Python work very well with ELI’s touchscreen.

Support

Support

Once you’ve picked up your ELI, FDI is with you every step of the way. We offer support and documentation on our forums and support wiki.

EDID

Extended Display Identification Data, or EDID, is the data structure passed from a display screen to a device’s video source. Find out more about ELI and EDID here. .

Application Notes

Further assistance can be found in our application notes for the ELI family. https://www.teamfdi.com/eli#appnotes

Recommended Linux Packages Available Through apt-get

We recommend the following packages for your various entertainment and productivity needs:

  • MPlayer – This is a lightweight video player perfectly suited for your Raspberry Pi/Beaglebone Black needs. In the terminal type: sudo apt-get install mplayer
  • Libre Office – A productivity suite containing a word processor, spreadsheet manager, presentation creator, and more of the expected office programs. In the terminal type: sudo apt-get install libreoffice

Support From FDI:

FDI Forums
Design Services
Production Services

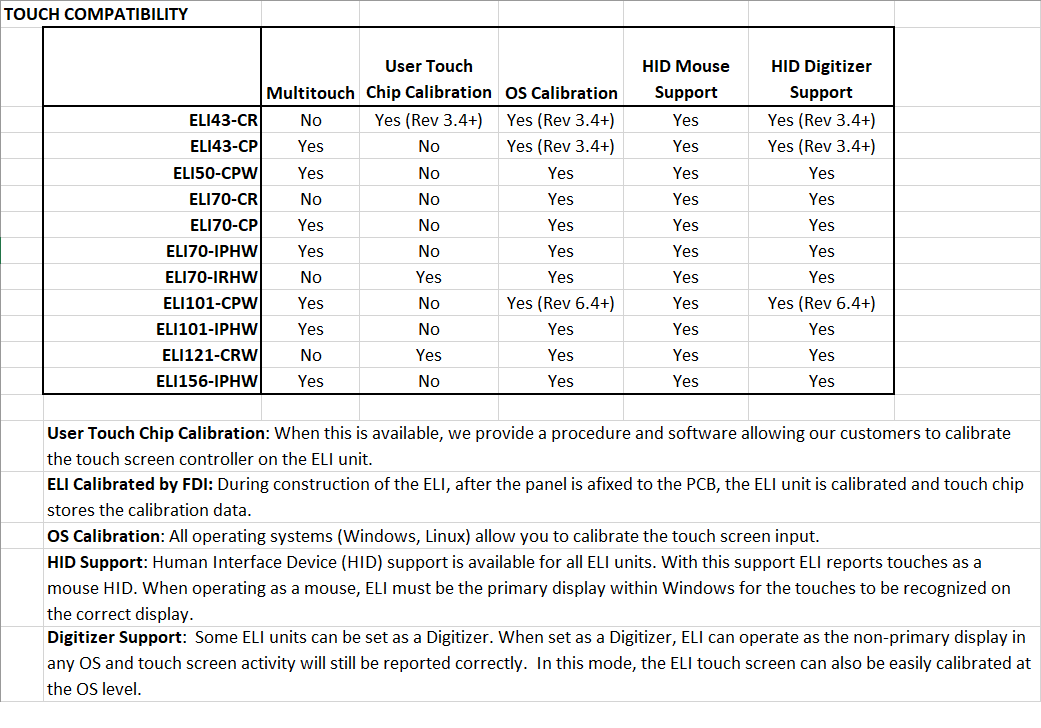

Compatibility

Purchase Info

10.1″ High Bright PCAP Touchscreen LCD Module – ELI101-IPHW
10.1″ High Bright PCAP Touchscreen LCD Module – ELI101-IPHW

Part #: ELI101-IPHW

Request a volume price quote from FDI: Request Quote Form

For pricing, click on one of the Distribution Icons below.

Status: Mass Production

Production guaranteed: Until 2032

Warranty: 1 Year (Extended available)

Associated Products

Assorted Monoprice USB cables
Assorted Monoprice USB cables

Part #: MonoPriceUSB

For pricing, click on one of the Distribution Icons below.

Buy it now:

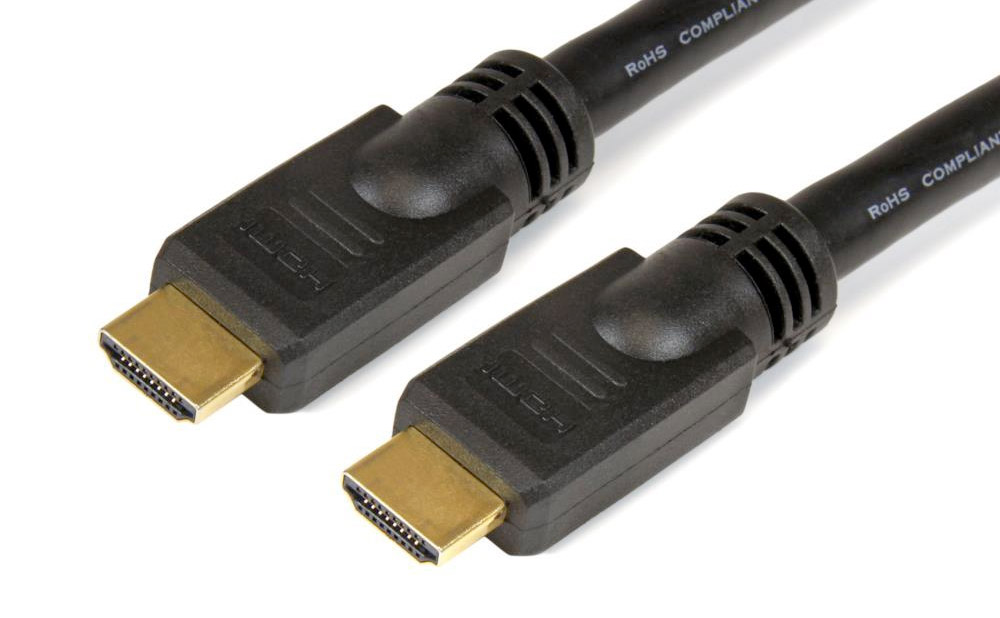

Assorted Monoprice HDMI cables
Assorted Monoprice HDMI cables

Part #: MonoPriceHDMI

For pricing, click on one of the Distribution Icons below.

Buy it now:

Qualtek HDMI-A cable
Qualtek HDMI-A cable

Part #: 1721001-03

For pricing, click on one of the Distribution Icons below.

Buy it now:

CNC Tech HDMI to mini HDMI cable
CNC Tech HDMI to mini HDMI cable


Part #: 742-10010-00100
For pricing, click on one of the Distribution Icons below.



Buy it now:

Qualtek USB mini B cable
Qualtek USB mini B cable

Part #: 3021003-03
For pricing, click on one of the Distribution Icons below.

Buy it now:

CUI 12V 2A Power Supply barrel plug
CUI 12V 2A Power Supply barrel plug

Part #: SWI24-12-N-P5

For pricing, click on one of the Distribution Icons below.

Buy it now:

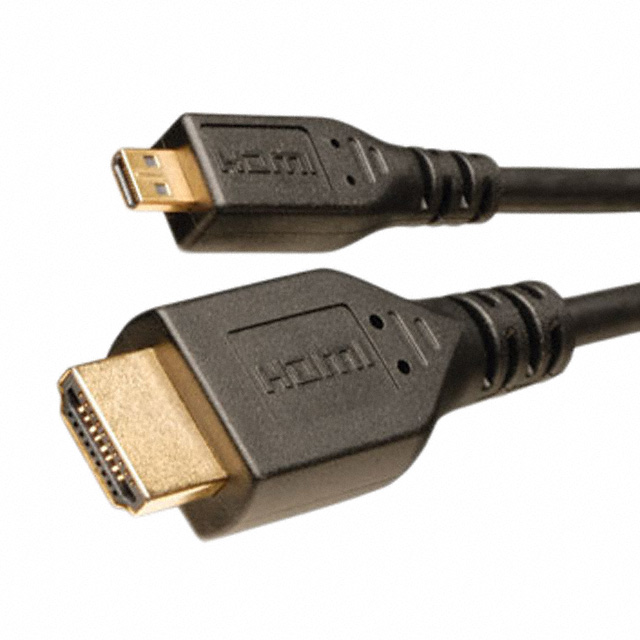

Tripp Lite HDMI to micro HDMI cable
