Overview
This adapter is designed to allow standard 14-pin Renesas RX JTAG devices to connect to the SOMDIMM-RX62N and SOMDIMM-RX63N units. The µEZGUI-RX62N-35QT-BA is not supported by this adapter.

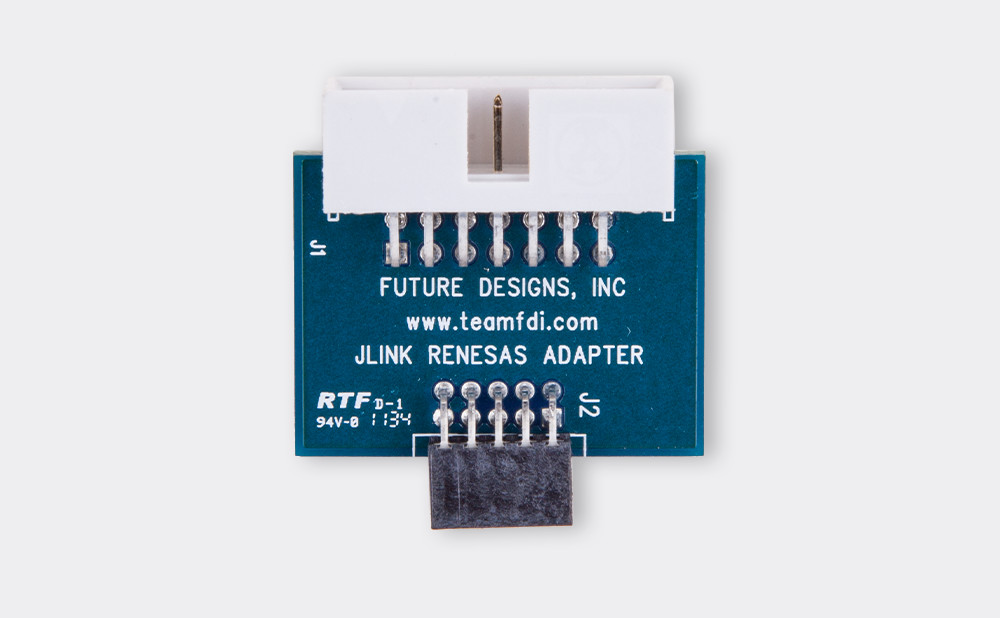

FDI Mini-JTAG adapter for RX devices – JLINK-RX-AD
Part #: JLINK-RX-AD
Request a volume price quote from FDI: Request Quote Form
For distribution pricing, click on the Purchase Info tab.
Status: In production
Warranty: 1 Year (Extended available)
- JTAG Adapter for FDI Renesas RX devices
- Standard 14-pin header for RX JTAG end
- Mini 10-pin header for Target
- Only for SOMDIMM-RX6xN
Specifications
- Standard 14-pin header for RX JTAG connection
- Mini-10 pin JTAG for Target
Specifications
| Connection | Standard 14-pin header for RX JTAG connection |
|---|---|
| Target | Mini-10 pin JTAG for Target |
Documentation
Current Documentation – Rev 1.1
| Title | Type | Format | Date | |
|---|---|---|---|---|
| JLINK-RX-AD User's Manual | User's Manual | 9/17/2024 |
