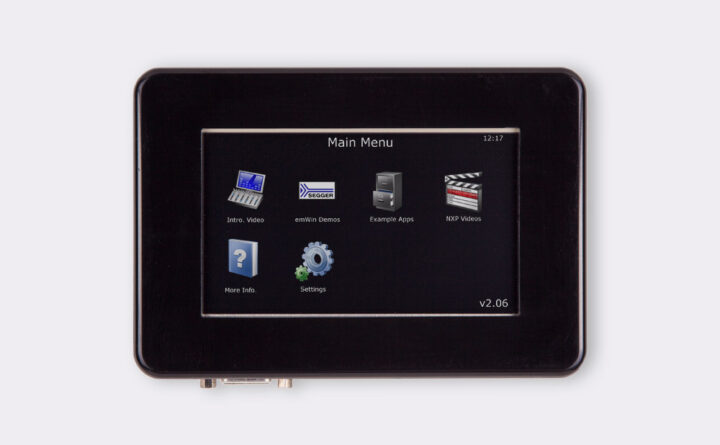

A photo of 4.3″ Resistive Touchscreen LCD GUI in a Housing from the front
A photo of 4.3″ Resistive Touchscreen LCD GUI in a Housing from the back
A photo of 4.3″ Resistive Touchscreen LCD GUI in a Housing from the edge

4.3″ Resistive Touchscreen LCD GUI in a Housing – UEZGUI-43-H01

Part #: UEZGUI-43-H01
Request a volume price quote from FDI: Request Quote Form
For distribution pricing, click on the Purchase Info tab.

Status: In Production
Production guaranteed: Until 2032
Warranty: 1 Year (Extended available)

  • Housed Microcontroller-based intelligent HMI GUI
  • 4.3″ WQVGA Resistive Touchscreen LCD
  • µEZ® / FreeRTOS Rapid Software Development Platform
  • ARM Cortex-M3 120MHz MCU with 512KB Internal Flash
  • 8MB SDRAM, 8MB NOR Flash
  • Expansion: RS232/RS485 via DB9, USB Host and Device, 10/100 Ethernet
  • DC Power Jack for external Wall Power (7-24V)

The µEZGUI-43-H01 combines our µEZGUI-1788-43WQR-BA and µEZGUI‑EXP1 together in a sleek ABS plastic enclosure to create a powerful self-contained unit. The µEZGUI-43-H01 comes pre-assembled and is ready to be used out of the box. Our µEZ / FreeRTOS Rapid Development Platform provides all of the typical drivers and firmware needed for most commercial applications in an open source, no cost package. Our µEZ / SafeRTOS platform is perfect for Medical or Safety Critical applications and runs on the same µEZ GUI Family hardware. We also offer optional Wi-Fi and Power over Ethernet (POE) options for additional flexibility. Ask about our µEZ+ Boot Loader to allow easy customer application firmware updates in the field via either the microSD card or a USB Flash drive.

>> See the brochure

SKU: UEZGUI-43-H01 Categories: Resistive Touchscreens, Touch Screen GUI Development Kits, μEZ GUI, μEZ GUI 4.3 Resistive, µEZ GUI Featured
  • Overview
  • Specifications
  • Documentation
  • Software
  • Support
  • Ratings
  • Purchase Info

Overview

µEZ GUI logoThe 4.3” Resistive Touch LCD GUI in a Housing – UEZGUI-43-H01 provides a cost effective resistive touch option in the standalone microcontroller-based µEZ® GUI product family. Featuring a beautiful resistive touch TFT LCD panel, this product combines the high value 4.3” Resistive Touch LCD GUI, UEZGUI-1788-43WQR-BA, and uEZGUI-EXP1 expansion board together in a ABS plastic enclosure for an“off-the-shelf”Graphical User Interface (GUI) or Human Machine Interface (HMI) design prepared for use in a variety of end customer applications out of the box.

FDI also offers low cost customization services for customer specific hardware, software or packaging applications at volumes of 500 units or more.

Quick Start Documentation

Quick Start Guide

µEZGUI-43-H01 Box Contents
  • UEZGUI-1788-43WQR-BA Production Module
  • UEZGUI-EXP1 Expansion Board
  • Black plastic ABS Housing
  • Unit is fully self-contained and wall mountable
μEZGUI Software
  • μEZ® / FreeRTOS Rapid Development Platform
  • MicroSD card appears as a USB Flash Drive to the PC
  • Rowley CrossWorks Compiler and Tool Suite
  • Segger J-Link Lite JTAG for programming and debug

Specifications

Microcontroller

NXP LPC1788

- Speed

120MHz

- Internal SRAM

96KB

- Internal Flash

512KB

External Flash

8MB

External Flash Type

NOR

External Flash Optional

up to 32MB

SDRAM Standard

8MB

SDRAM Optional

up to 32MB

128Mbit Serial PCM Memory, option

Not available

Non-volatile data storage standard

Internal 4K EEPROM

Non-volatile data storage optional

External 8KB EEPROM

SD Card Bus interface

SPI @ 15MHz

USB

USB Device Mini-AB for Host or Device Operation

Expansion - primary

70 Fine Pitch I/O Connector for External Expansion:Serial Ports, UART, I²C, SPI, USB Host/DeviceRMII interface for Ethernet 10/100

Expansion - additional

ISP, UART, RTC External battery

Accelerometer

3 Axis

Temperature Sensor

Yes

JTAG

Mini-JTAG Debug Connector

RTC

Internal RTC, Supercap backup

Audio

On-board Speaker

Operating Temperature:

-20° to 70° C

Storage Temperature:

-30° to 80° C

Power Input

USB Device Mini-AB for power

Input Voltage:

+5 Volt DC

Power Consumption:

350 mA typ / 500mA max

Overall Size

116.84 (W) x 72.14 (H) x 12.95 (D) mm

Mounting:

#6 screws in 4 corners

Weight:

100 grams

RoHS Compliant:

Yes

Screen Size (diagonal)

4.3 inches

Display Technology

TFT-LCD

Resolution

480 x 272 (WQVGA)

Brightness

360 nits (typ)

Contrast Ratio

500 : 1 (typ)

Aspect Ratio

Wide 30:17

Colors:

262K (18 bit)

Pixel Pitch

0.198 (H) x 0.198 (V)

Vertical Viewing Angle:

55/80 ° U/D

Horizontal Viewing Angle:

80/80 ° L/R

Surface Finish:

Anti-glare

Touchscreen type

4-Wire Resistive

Active Area:

95.04 (W) x 53.86 (H) mm

Response Time:

22Tr / 8Tf ms (typ)

Backlight:

9 LEDs (9S x 1P)

Backlight Life:

10K hrs (min)

Backlight Power Consumption:

576 mW (typ)

Reverse Scan:

U/D, L/R by software

Kit Available?

Yes

Documentation

Current Documentation

Note: Most documentation for UEZGUI-1788-43WQR is applicable to the 4.3” Resistive Touch LCD GUI in a Housing.

TitleTypeFormatDate
BrochureBrochurepdf01/20/2016
Start Here Guide for UEZGUI-1788-43WQRStart Here Guidepdf11/23/2022
Hardware Users ManualHardware User's Manualpdf01/19/2016
Software QuickStart GuideSoftware Quick Start Guidepdf09/15/2014
Software User's GuideSoftware User's Guidepdf07/25/2023
Interactive Online uEZ GUI API Library (By Doxygen)uEZ GUI API LibraryOnline03/29/2016
Latest PCNDocumentpdf05/12/2015
Latest Hardware RevDocumentpdf05/12/2015
Converting Images from 24-bit to 16-bit for uEZ GUI
Documentpdf06/07/2013
JTAG Programming uEZ GUI and SYG Products
Engineering Guidepdf05/29/2024
3D & EASM Model Files (By Request Only)Mechanical Modelspdf06/20/2011
Converting a PowerPoint Slideshow for use on uEZ GUI ProductsApplication Notezip10/19/2016
Expansion Board Design GuideApplication Notepdf11/03/2016
How to Create Videos for uEZ GUI
Engineering Guidezip02/22/2016

Historical Documentation

TitleTypeFormatDate
uEZGUI-1788-43WQR 7.1 PCNDocumentpdf10/30/2013
uEZGUI-1788-43WQR 7.0 PCNDocumentpdf08/23/2013
uEZGUI-1788-43WQR 6.2 PCNDocumentpdf02/22/2013
uEZGUI-1788-43WQR 6.1 PCNDocumentpdf10/30/2012
uEZGUI-1788-43WQR 6.0 PCNDocumentpdf03/29/2013
uEZGUI-1788-43WQR 5.1 PCNDocumentpdf08/20/2012
uEZGUI-1788-43WQR 5.0 PCNDocumentpdf12/04/2012

Software

FDI Software

μEZ® Source Files
μEZ® is an open source, embedded middleware platform providing underlying RTOS and processor abstraction features enhancing portability of application code to multiple ARM and Renesas platforms with high reusability.

FDI Bootloader
The μEZ+ Bootloader is perfect for upgrading your firmware in the field through mediums such as an SD card, USB flash drive, or even over a serial interface such as Ethernet or USB.

μEZGUI Realtime GUI Rotation
This document outlines the procedure for setting up a real-time GUI rotation demo based on readings from the accelerometer on a uEZGUI

μEZGUI Realtime GUI Rotation Video


Recommended 3rd Party Software

Rowley CrossWorks Compiler and Tool Suite
Crossworks compiler for ARM.

FreeRTOS
Developed in partnership with the world’s leading chip companies over a 12 year period, FreeRTOS is the market leading real time operating system (or RTOS), and the de-facto standard solution for microcontrollers and small microprocessors.

SafeRTOS
SAFERTOS is a safety certified Real Time Operating System (RTOS) for embedded processors. It delivers superior performance and pre-certified dependability, whilst utilizing minimal resources.

emWin
emWin is designed to provide an efficient, processor- and LCD controller-independent graphical user interface (GUI) for any application that operates with a graphical LCD. It is compatible with single-task and multitask environments, with a proprietary operating system or with any commercial RTOS. emWin is shipped as “C” source code. It may be adapted to any size physical and virtual display with any LCD controller and CPU.

Crank Software
Crank™ Software Inc. is an innovator in embedded user interface (UI) solutions. Compared to traditional electronic design automation tools, Crank’s products and services enable R&D teams to more quickly develop rich graphical displays—also called UIs or HMIs—for resource-constrained embedded devices. Applications include in-car graphical displays, animated GPS systems, and rich user interfaces on factory floors. Crank Software bridges the gap between UI design and embedded systems to deliver competitive advantage because streamlining the development lifecycle enables their customers to get products to market faster, with higher ROI and lower TCO, while delivering a superior customer experience. Crank Storyboard™ Designer enables user interface (UI) designers to easily prototype the look and feel of a product, and then deploy a production-ready interface directly to the embedded target. Designers maintain full control over the UI and user experience (UX) without having to perform a hand off to an embedded systems engineer for implementation.

J-Link Software Downloads
Various Various Download latest software and drivers from the Segger website.


Resources

J-Link Product Page
SEGGER J-Links are the most widely used line of debug probes available today. They’ve been proven for more than 10 years with over 250,000 units sold, including OEM versions and on-board solutions. This popularity stems from the unparalleled performance, extensive feature set, large number of supported CPUs, and compatibility with all popular development environments.

15FPS Video Demo
